Product Information
Product Information

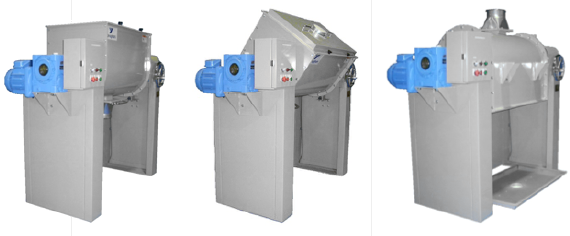

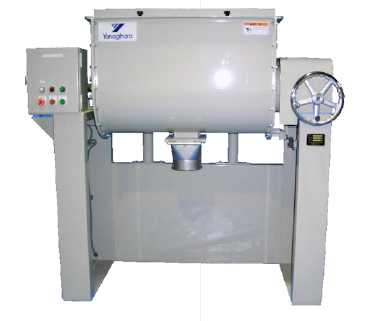

The Turnable Ribbon Mixer can be flipped over for easy discharge and cleaning.
The vessel can be flipped over for the remaining amount to be received by the lid and discharged by pulling the lid forward.
When the vessel is reversed, the machine can be stopped by activating the limit switch to prevent an accident.
The powder is assumed to be directly fed manually for low volume production and the height of the vessel is approximately 140 cm in the upright state, so, for safety reasons, it should be stopped when the vessel is tilted for easy working conditions.
The capacity is 1 to 2 bags (25 to 50kg). You can add more, but the mixing time will be somewhat longer.
We also offer the Model RB550R with a 4 to 6 bag (100 to 150 kg) capacity.
A | B | C | D | E | Required Power | |
---|---|---|---|---|---|---|
RB450R 1 to 2 bags (25 to 50kg) |
1310 | 620 | 1415 | 635 | 1515 | 1.5kw |
RB550R 4 to 6 bags (100 to 150kg) |
1570 | 692 | 1485 | 608 | 1770 | 2.2kw |
