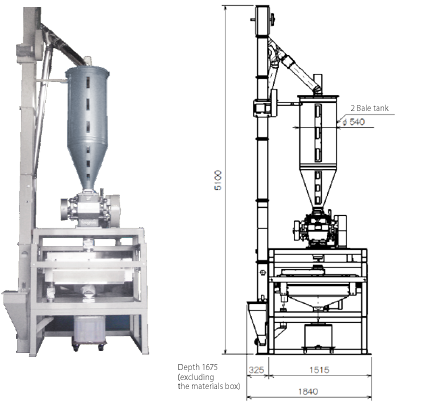

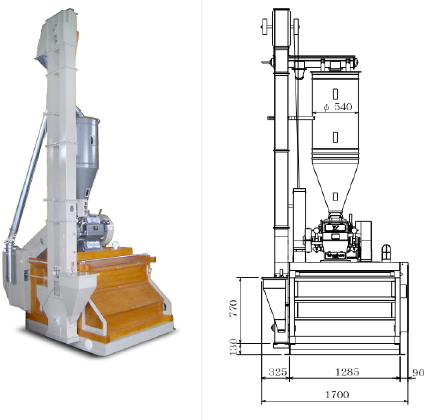

The main elements of the roll flour mill, sieve, elevating machine, and tank are packaged into a unit, and driven by a single motor (three-phase 200 V 2.2 kw), so that it can be operated with only simple electrical wiring. Milled powder products accumulate in the sieve box.
Since the electromagnetic switch and on/off switch are attached to the machine before shipment, users can start using the machine after just installing it a 15 to 20A breaker and connecting the electric cable to the terminal of the electromagnetic switch.
The wooden sieve was changed to an aluminum one, the rotating stroke speed was readjusted, and a hanging type of design was adopted. The product outlet, a container or bag holder, is located directly below the sieve, but you also have an option of employing an air transport or recovery device.
The time-consuming work of cleaning the sieve box is now much easier.
In addition, it is also possible to mount new types of roll machines.
The size of the flour mills is 7" x 10".
Using this flour mill as the core component, we offer a wide variety of products.
Also, large roll machines can be used to meet our customers’ requirements.

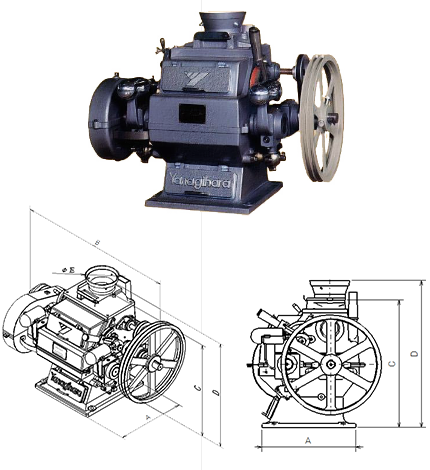

Depth A |
Width B |
Height C |
Height D |
Diameter A |
Required Power at 200V, kw | |
---|---|---|---|---|---|---|
Conventional model, 10" type | 545mm | 750mm | 527mm | 600mm | 150mm | 2.2 to 3.7 |

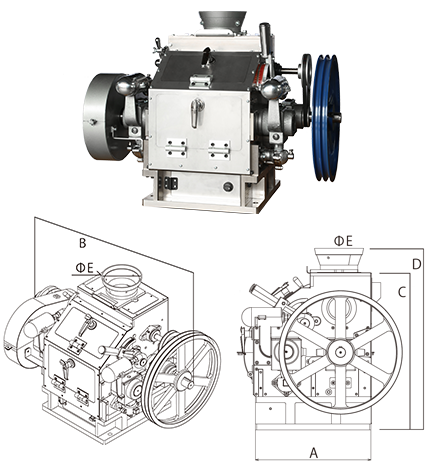

Small size Flour Mill with 7” x 10” roller Just remove front & back cover, Easy cleaning & maintenance is possible.
Depth A |
Width B |
Height C |
Height D |
Diameter E |
Required Power at 200V, kw | |
---|---|---|---|---|---|---|
Conventional model, 10" type | 380mm | 868mm | 516mm | 597mm | 130mm | 1.5~2.2 |
