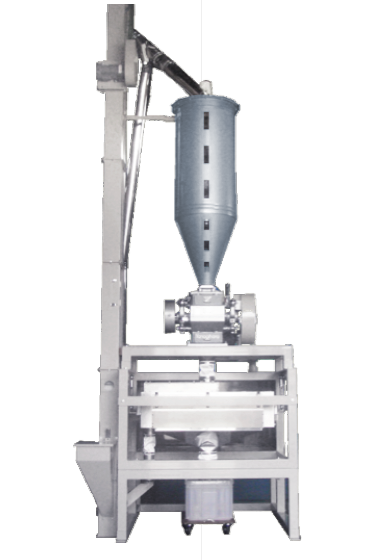

The wooden sieve was changed to an aluminum one, and the rotating stroke speed was readjusted, and ae hanging type of design was adopted.
The product outlet, a container or bag holder, is located directly below the sieve, but you also have an option of employing an air transport or recovery device.
The time-consuming work of cleaning the sieve box is now much easier.
In addition, it is also possible to mount new types of roll machines.
[Three-phase 200V]
Roll Flour Mill | Sieve | Elevating machine | Total |
---|---|---|---|
2.2kw | 0.75kw | 0.4kw | 3.3kw |
In order not to cut the hull of the wheat, the machine employs the dull/dull type of roll teeth combination, and also a low rotation speed type to limit heat during crushing.
Purpose | Rotation speed of the main milling component | Required Power | Sieve | Sieve mesh | Milling Performance |
---|---|---|---|---|---|
Wheat flour | 260rpm | 2.2kw 6P (3hp) | Type B, 2-stage | NP45# 121-mesh | 15 to 30kg/h |
For buckwheat flour milling, V-shaped sharp/sharp roll scoring as well as incorporating the core-removal process necessary to the milling in the sieve, enabling elimination of hull layers mixed in with the shredded flour.
Use | No. of revolutions | Required power | Sieve | Sieve net | Milling capacity |
---|---|---|---|---|---|
Ordinary flour | 320rpm/min | 2.2kw 4P(3hp) | Type BR 2-step With core-removal device |
NP38# 102Mesh | 60kg/h |
For noodles | NXX10# 109Mesh equivalent | 45kg/h | |||
High revolution type | 490rpm/min | 3.7kw 4P(5hp) | Type BR 2-step | Conditions differ depending on the milled substance (epidermis, husk), sieve net, etc. |
Low-speed roll grinding minimizes heat for firm, high-quality flour with little change to the finished product.
Use | No. of revolutions | Required power | Sieve | Sieve net | Milling capacity | Remarks |
---|---|---|---|---|---|---|
Quality flour | 320rpm/min | 2.2kw 4P(3hp) | Type B 2-step | NXX 7# | 70kg/h | Washed and dried rice with 17% or less moisture remaining |
NXX 10# | 40kg/h | |||||
Rice granules | NXX 10# | 50kg/h | Mochi rice steamed in a steamer | |||
Glutinous rice flour | NMG72# | 90kg/h | Capacity differs depending on the way the dough is made and the sieve net | |||
Gyuhi rice flour (Gyuhi/Habutai flour) |
NXX 9~10# | 85kg/h | Washed and dried mochi rice |
We refer to the process of milling non-glutinous rice with a high moisture content (20-24%) as Namako. The rollers are fitted with tangle-preventers while the machine can easily be cleaned as the netting gets clogged easily.
Rice quality | No. of revolutions | Required power | Sieve | Sieve net | Milling capacity | Remarks |
---|---|---|---|---|---|---|
Light rice | 320rpm/min | 2.2kw 4P(3hp) | Type B 1-step | Brass 50-60 mesh | 300kg/h | Moisture 20-24% retained 20 minutes after washing |
Firm rice | 240kg/h |
Spices often contain high levels of oil. This machine mills carefully to limit heat when grinding, retaining the original flavor of the spices.
Use | No. of revolutions | Required power | Sieve | Sieve net | Milling capacity | Remarks |
---|---|---|---|---|---|---|
Wasabi powder | 320rpm/min | 2.2kw 4P(3hp) | Type BR 2-step | NP45# | 55~60kg/h | Differs depending on the drying |
Mustard powder | NXX10# | 35~40kg/h | - | |||
Garlic powder | NXX8# | 120kg/h | Within 5% when dried | |||
Soybean flour | NXX7# | 40kg/h | Hulled |
