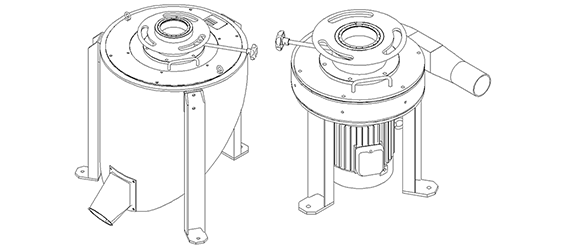

This decorticating machine produces marunuki (hulled buckwheat) by removing the husk from unpolished buckwheat. The buckwheat is husked by the upper and lower diamond-coated mortars.
The spacing between the mortars can be easily adjusted to fit the size of the grain by operating the handle. Also, if you do not put emphasis on the performance, you can use it with a fixed spacing.

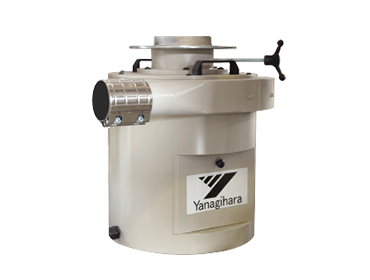

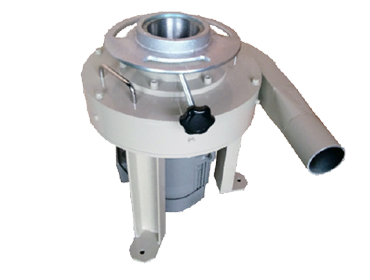

Model AU300D (pneumatic type): After husk decorticating, the transportation is done by pneumatic transport.
Model AU300DS (chute type): After husk decorticating, it can be connected to an elevating machine or a similar setup.
Required power: Three-phase 200V, 2.2kw 4P * Use it with inverters.
Decorticating Capacity:100 ~ 250kg/h
Required air volume: 5m2/min or more

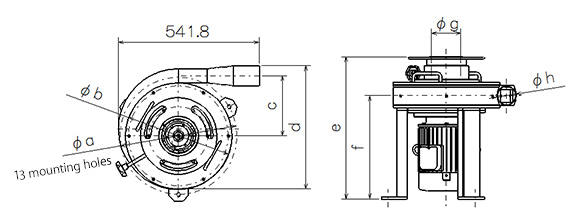

φa | φb | c | d | e | f | Feed opening φg |
Feed opening φh |
|
---|---|---|---|---|---|---|---|---|
AU300D | 450mm | 409mm | 232mm | 474mm | 547mm | 399mm | 112mm | 76.3mm |
Required power: Three-phase 200V, 2.2kw 4P * Use it with inverters.
Decorticating Capacity:100 ~ 250kg/h

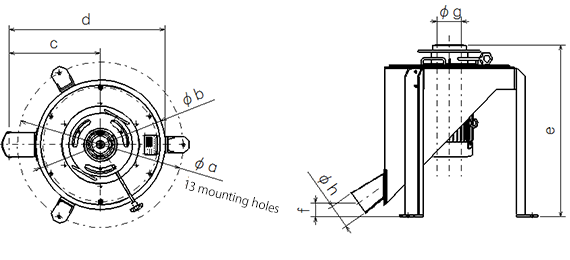

φa | φb | c | d | e | f | Feed opening φg |
Feed opening φh |
|
---|---|---|---|---|---|---|---|---|
AU300DS | 768mm | 600mm | 422mm | 722mm | 797mm | 65mm | 112mm | 112mm |
