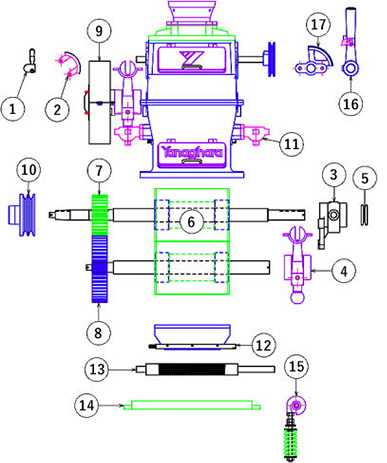

Number | Parts name | Necessary quantity | Remarks | |
---|---|---|---|---|
1 | Adjustment handle | 1 | BX119 | |
2 | Adjustment scale plate | 1 | BX117 | |
3 | Main shaft metal set (including metal ring) | 2 | BX193A | Both left and right |
4 | Secondary shaft metal set (including metal ring) | 2 | BX175 | Both left and right, universal |
Gunmetal | 4 | BX155 | ||
5 | 2.81A, 1V pulley (71.5φ) | 1 | BX143A | Hole diameter: 34φ |
6 | Main shaft roll (Key processing from 95/4) | 1 | BX191 | |
Secondary shaft roll | 1 | BX192 | ||
7 | Small gear, standard quantity of 30 or 29, with spill | 1 | BX149A・BX148 | |
For black grain, quantity of 26 or 25, with spill | 1 | |||
8 | Large gear, standard quantity of 54, with spill | 1 | BX146 | |
For black grain, quantity of 58, with spill | 1 | |||
9 | Gearbox, standard type (steel) | 1 | BX857A/858A | Set of upper and lower |
10 | Stepped pulley, 140φB2V, flat | 1 | BX157 | 5.1/2" |
168φB2V, flat | 1 | BX179 | Type B, for 60Hz | |
11 | Secondary shaft metal receiver box/cover | 2 | BX158/159 | |
12 | Scale removing shaft and plate set | 2 | BX130A/168 | |
13 | Feed roll (shaft) | 1 | BX115 | |
14 | Eccentric shaft | 1 | BX129A | |
15 | Screw collar set | 2 | Without floating spring | |
Screw collar body | 2 | BX127B | Lot, without others | |
Lot (adjustment bolt) | 2 | BX177 | ||
Stepped washer | 4 | BX178 | Both sides of floating spring | |
Floating spring, 7mm, standard type | 2 | BX139 | ||
Floating spring, 8mm, for black grain | 2 | BX181 | ||
16 | Lever handle wit click, assembly | 1 | ||
Lot (bolt), with click | 1 | BX131/132A | ||
17 | Scale plate for stabilization | 1 | BX133A/162 |

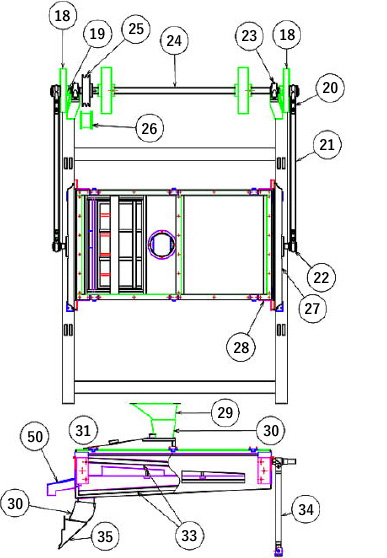

Number | Parts name | Necessary quantity | Remarks | |
---|---|---|---|---|
18 | Flywheel (left and right set) | 1 set | BX509A | Without flywheel pin |
19 | Flywheel pin | 2 | BX510 | with screw nut |
20 | Lot metal (large) | 2 | BX516A/517 | For left and right, with bearing 6204ZZ |
21 | Round bar, 820mm, bamboo plywood | 2 | BX519B | |
22 | Lot metal (small) | 2 | BX518 | Fixed |
23 | Crank metal (UCP206) | 2 | ||
Crank metal stand | 2 | BX508 | ||
24 | Crank shaft | 1 | BX507 | |
25 | 7" B2V pulley | 1 | For standard parts | |
26 | Complete set of V-belt tightener | 1 | Bearing 6202 | |
27 | Central Bar with central bracket | 2 | BX452/453 | Light alloy |
Central bracket | 2 | BX453 | ||
28 | Inner sieve support bracket (upper) | 4 | BX570A | Check front, back, left, and right |
Inner sieve fixing bracket (lower, angular) | 4 | BX416 | ||
New type support bracket for inner sieve | 4 | ◎BX1057B | Check front, back, left, and right | |
29 | Funnel under the machine body | 1 | BX467 | Made of stainless steel |
30 | Connection bag, flannel, one set of two for upper and lower | 1 set | BX448 (Square) | BX451 (Trapezoid) |
31 | Inner sieve set, type B, 2-stage | 1 | Wheat | |
Inner sieve set, Type BR, 2-stage, without intermediate discharge mechanism | 1 | Others | ||
Inner sieve set, type BR, 2-stage, with intermediate discharge mechanism | 1 | For buckwheat | No. 50 gutter for intermediate discharge mechanism is an option | |
33 | Type B muntin (One set of two for upper and lower) | 1 set | Without lower mesh | |
Brush rod with rubber | 8 | For type B | ||
Type BR muntin (One set of two for upper and Lower) | 1 set | With lower mesh | ||
Hypalon brush | 180 | For type BR | ||
34 | Leaf spring, 530mm, bamboo plywood | 4 | BX454A | |
35 | Discharge spout | 1 | Made of stainless steel, BX469B |

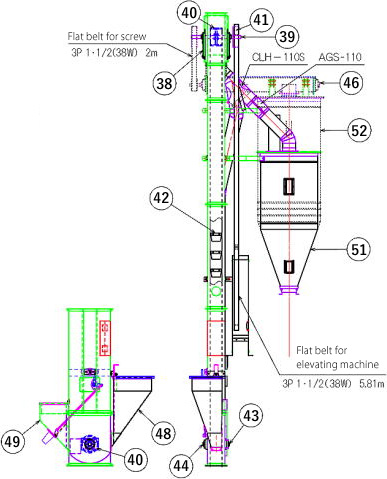

Number | Parts name | Necessary quantity | Remarks | |
---|---|---|---|---|
38 | Guide metal, set for one side of the metal | 2 | With UCT205 | |
39 | Upper shaft, 25φ x 430 | 1 | BX732A | |
40 | Inner wheel, 6" x 4" | 2 | Upper and lower, BX734 | |
41 | Flat pulley, 8" x 2" | 1 | BX735 | Requires 2 sets when using screw |
42 | Belt with Laiket bucket, 4" x 7.8m | 1 | White belt and white bucket, 50 sets | |
43 | Lower metal, UCF-205 | 2 | Sieve side, outer side | |
44 | Lower shaft, 25φ x 230 (for steel) | 1 | For wooden parts, 25φ x 207 | |
46 | Screw conveyor for 2-bale unit | 1 | Choose from wood/steel, with gutter | |
48 | Raw material box set (steel) | 1 | Positive and negative | |
49 | Switching box set for intermediate discharge mechanism (positive and negative) | 1 | Back side of elevating machine | |
50 | Discharge spout (gutter) for intermediate discharge mechanism, made of SUS | 1 | BX444-SUS | Wind bolt, 6mm |
51 | Tank set for 1-bale capacity (with support bracket and lid) | 1 | 492φ x entire length 1200, BX792 | |
52 | Tank set for 2-bale capacity (with support bracket and lid) | 1 | 540φ x entire length 1672, BX791 | |
* | Flat belt for elevating machine, 3P, 1.1/2 (38W) | 1 | Length: 5.81m | |
Flat belt for screw, 3P, 1.1/2 (38W) | Length: 2.0m |
